The Cisco Catalyst 8200 Series Edge Platforms with Cisco IOS XE SD-WAN software deliver Cisco’s secure, cloud-scale SD-WAN and SD-Routing solutions to the small branch. The platforms are purpose-built for performance and integrated SD-WAN services along with flexibility to deliver security and networking services together from the cloud or on premises. They have a wide variety of interface options to choose from, with backward compatibility to existing WAN, LAN, and voice modules. Powered by Cisco IOS XE, a fully programmable software architecture, and API support, the Catalyst 8200 Series can facilitate automation at scale in both SD-WAN and SD-Routing deployments to achieve zero-touch IT capability while migrating workloads to the cloud. The platforms also come with a trustworthy solutions 2.0 infrastructure that secures them against threats and vulnerabilities through advanced integrity verification and remediation of threats.
The Catalyst 8200 Series Edge Platforms are offered in two models: C8200L-1N-4T for the small branch with SASE-compliant, cloud-based security requirements, and C8200-1N-4T for the small to medium-sized branch with requirements for higher throughput, scale, and service flexibility. In addition to supporting SASE-compliant cloud-based security services, the C8200-1N-4T also delivers a flexible system of best-in-class, on-premises security services through container-based apps, using Cisco’s third-party ecosystem.
Table 1. Platform specifications
| Model | Description | 1G port density | Slots | Memory (DRAM) default | Storage (M.2 SSD) default |

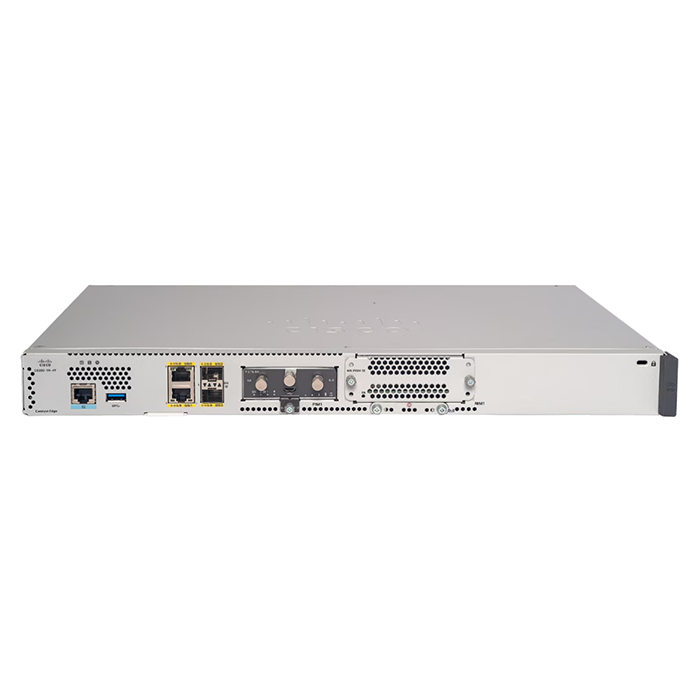

| C8200-1N-4T | C8200 1RU w/ 1 NIM slot and 4x 1 Gigabit Ethernet WAN ports | 4 | 1 NIM 1 PIM |
8 GB | 16 GB |
| C8200L-1N-4T | C8200L 1RU w/ 1 NIM slot and 4x 1 Gigabit Ethernet WAN ports | 4 | 1 NIM 1 PIM |
4 GB | No |
Table 2. Modules supported on Cisco Catalyst 8200 Series Edge Platforms
|
Product number |
Description |
|
Ethernet Layer 3 modules |
|
|
C-NIM-1M |
1-port 2.5/1Gbps RJ-45 WAN, 90W Poe 802.3 af/at/bt NIM |
|
C-NIM-2T |
2-port 100Mbps/1Gbps dual-mode RJ45/SFP, NIM with WAN MACSec |
|
LAN / WAN modules |
|
|
C-NIM-8T |
8-port 100Mbps/1Gbps switch NIM, LAN/WAN MACSec and Optional L3 |
|
C-NIM-8M* |
8-port 100M/1/2.5Gbps switch NIM, UPoE+, LAN/WAN MACSec and Optional L3 |
|
NIM-ES2-4 |
Cisco 4-port Gigabit Ethernet LAN switch NIM |
|
NIM-ES2-8 |
Cisco 8-port Gigabit Ethernet LAN switch NIM |
|
NIM-ES2-8-P |
Cisco 8-port Gigabit Ethernet LAN switch NIM with PoE support |
|
Voice modules |
|
|
NIM-2FXO |
2-port FXO NIM |
|
NIM-4FXO |
4-port FXO NIM |
|
NIM-2FXSP |
2-port FXS NIM |
|
NIM-4FXSP |
4-port FXS NIM |
|
NIM-2FXSP/4FXOP |
2-port FXS and 4-port FXO NIM |
|
NIM-4E/M |
4-port E/M NIM |
|
NIM-2BRI-NT/TE |
2-port BRI (NT and TE) NIM |
|
NIM-4BRI-NT/TE |
4-port BRI (NT and TE) NIM |
|
NIM-PVDM-32 |
32-channel Voice DSP NIM Module |
|
NIM-PVDM-64 |
64-channel Voice DSP NIM Module |
|
NIM-PVDM-128 |
128-channel Voice DSP NIM Module |
|
NIM-PVDM-256 |
256-channel Voice DSP NIM Module |
|
NIM-1MFT-T1/E1 |
1-port multiflex trunk voice/clear-channel data T1/E1 module |
|
NIM-2MFT-T1/E1 |
2-port multiflex trunk voice/clear-channel data T1/E1 module |
|
NIM-4MFT-T1/E1 |
4-port multiflex trunk voice/clear-channel data T1/E1 module |
|
NIM-8MFT-T1/E1 |
8-port multiflex trunk voice/clear-channel data T1/E1 module |
|
DSL/broadband |
|
|
NIM-VAB-A |
Multi-mode VDSL2/ADSL/2/2+ NIM Annex A |
|
NIM-VA-B |
Multi-mode VDSL2/ADSL/2/2+ NIM Annex B |
|
NIM-VAB-M |
Multi-mode VDSL2/ADSL/2/2+ NIM Annex M |
|
NIM-4SHDSL-EA |
Multi-mode G.SHDSL NIM |
|
ISDN BRI for Data |
|
|
NIM-2BRI-S/T |
2-port ISDN BRI WAN interface card for data |
|
NIM-4BRI-S/T |
4-port ISDN BRI WAN interface card for data |
|
Channelized T1/E1 and ISDN PRI |
|
|
NIM-1CE1T1-PRI |
1-port Multiflex trunk voice/channelized data T1/E1 module |
|
NIM-2CE1T1-PRI |
2-port Multiflex trunk voice/channelized data T1/E1 module |
|
NIM-8CE1T1-PRI |
8-port Multiflex trunk voice/channelized data T1/E1 module |
|
Serial WAN interface |
|
|
NIM-1T |
1-port serial high-speed WAN interface card |
|
NIM-2T |
2-port serial high-speed WAN interface card |
|
NIM-4T |
4-port serial high-speed WAN interface card |
|
Async WAN interface |
|
|
NIM-16A |
16-port Asynchronous Module |
|
NIM-24A |
24-port Asynchronous Module |
|
Wireless WAN (LTE) |
|
|
P-5GS6-R16SA-GL* |
5G Sub-6 GHz Pluggable – 5G SA Global |
|
P-5GS6-GL |
5G Sub-6 GHz Pluggable – Global |
|
P-LTEAP18-GL |
CAT18 LTE Advanced Pro Pluggable - Global |
|
P-LTEA7-NA* |
CAT7 LTE Advanced Pluggable - North America |
|
P-LTEA7-EAL* |
CAT7 LTE Advanced Pluggable - EMEA, APAC, and LATAM |
|
P-LTEA7-JP* |
CAT7 LTE Advanced Pluggable - Japan |
|
P-LTEA-EA |
CAT6 LTE Advanced Pluggable - North America and EMEA |
|
P-LTEA-LA |
CAT6 LTE Advanced Pluggable - APAC, ANZ, and LATAM |
|
NIM-LTEA-EA |
CAT6 LTE Advanced - North America and EMEA |
|
NIM-LTEA-LA |
CAT6 LTE Advanced - APAC, ANZ, and LATAM |
