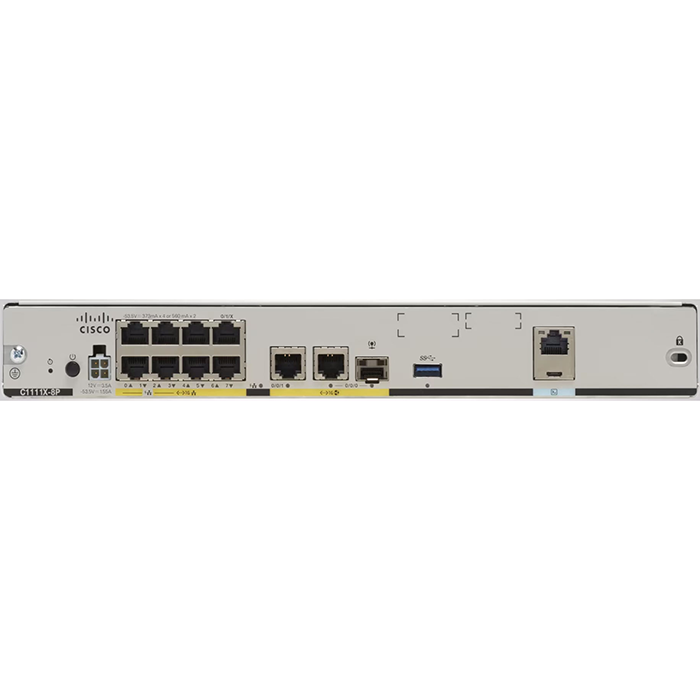

C1111X-8P

Dimensions (H x W x D)

1.75 x 12.70 x 9.03 in. (4.45 x 32.26 x 22.94 cm)

1.75 x 12.70 x 9.60 in. (4.45 x 32.26 x 24.38 cm)

Weight

4.37 lb. (1.98 kg)

4.76 lb. (2.16 kg)

4.50 lb. (2.04 kg)

4.89 lb. (2.22 kg)

Maximum power consumption

(excluding external PS loss)

C1111: 18W

C111x: 22W

C1111: 21.7W

C111x: 25.8W

C1111: 22.7W

C111x: 26.8W

24W

External power supply

• AC input voltage: Universal 100 to 240 VAC, 50 to 60 Hz
• Output voltage: 12 VDC
• Maximum output power: 66W
• Requires 115W power supply for optional PoE and PoE+
• PoE output voltage of -53.5 VDC

Operating conditions

• Temperature: 0° to 40°C at sea level, 1°C/1000 ft derating from 40°C
• Altitude: 0 to 10,000 ft (0 to 3048 m)
• Humidity: 10% to 85% relative humidity (noncondensing)

Nonoperating conditions

• Temperature: -40° to +70°C (-40° to +158°F)
• Altitude: 0 to 15,000 ft (0 to 4572 m)
• Humidity: 5% to 95% relative humidity (noncondensing)

Wi-Fi domains

–

C1111: A, B, D, E, F, H, N, Q, R, Z

C1116: E

C1117: A, E, Z

–

C1116-4PLTEEAW: E

C1117-4PLTEEAW: A, E

C1117-4PLTELAW: Z

Minimum supported version (XE SD-WAN)

Varies for each device. Refer to the SD-WAN Compatibility Matrix

C1111-4P

2

–

No

–

4

C1111-4PLTEEA/LA

2

–

Yes

–

4

C1111-4PW^*

2

–

No

Yes

4

C1116-4P

1

Yes

No

–

4

C1116-4PWE

1

Yes

No

Yes

4

C1116-4PLTEEA

1

Yes

Yes

–

4

C1116-4PLTEEAWE

1

Yes

Yes

Yes

4

C1117-4P(M)

1

Yes

No

–

4

C1117-4P(M)W^*

1

Yes

No

Yes

4

C1117-4P(M)LTEEA/LA

1

Yes

Yes

–

4

C1117-4P(M)LTEEA/LAW^*

1

Yes

Yes

Yes

4

Dimensions (H x W x D)

1.75 x 12.70 x 9.015 in.

1.75 x 12.70 x 9.015 in.

1.75 x 12.70 x 9.6 in.

1.75 x 12.70 x 9.6 in.

Weight

4.37 lb. (1.98 kg)

4.76 lb. (2.16 kg)

4.50 lb. (2.04 kg)

4.89 lb. (2.22 kg)

Maximum power consumption (excluding external PS loss)

C1111: 19.2W

C111x: 35.3W

C1111: 22.9W

C111x: 38.2W

C1111: 23.9W

C111x: 38.1W

C1111: 27.6W

C111x: 40.9W

External power supply

• AC input voltage: Universal 100 to 240 VAC, 50 to 60 Hz
• Output voltage: 12 VDC
• Maximum output power: 66W
• Requires 150W power supply for optional PoE and PoE+
• PoE output voltage of -53.5 VDC

Operating conditions

• Temperature: 0° to 40°C at sea level, 1°C/1000 ft derating from 40°C
• Altitude: 0 to 10,000 ft (0 to 3048 m)
• Humidity: 10% to 85% relative humidity (noncondensing)

Nonoperating conditions

• Temperature: -40° to +70°C (-40° to +158°F)
• Altitude: 0 to 15,000 ft (0 to 4572 m)
• Humidity: 5% to 95% relative humidity (noncondensing)

Wi-Fi domains

–

C1111: A, B, E, F, H, N, Q, R, S, Z

C1112: E

C1113: A, B, E, Z

–

C1111-8PLTEEAW: A, B, E, R

C1111-8PLTELAW: A, D, E, F, H, N, Q, S, Z

C1112-8PLTEEAW: E

C1113-8PLTEEAW: A, B, E

C1113-8PLTELAW: Z

Minimum supported version (XE SD-WAN)

Varies for each device. Refer to the SD-WAN Compatibility Matrix

C1111(X)-8P

2

No

No

No

8

C1111-8PW^*

2

No

No

Yes

8

C1111-8PLTEEA/LA

2

No

Yes

No

8

C1111-8PLTEEA/LAW^*

2

No

Yes

Yes

8

C1112-8P

1

Yes

No

No

8

C1112-8PWE

1

Yes

No

Yes

8

C1112-8PLTEEA

1

Yes

Yes

No

8

C1112-8PLTEEAW^*

1

Yes

Yes

Yes

8

C1113-8P(M)

1

Yes

No

No

8

C1113-8P(M)W^*

1

Yes

No

Yes

8

C1113-8P(M)LTEEA/LA

1

Yes

Yes

No

8

C1113-8PLTEEA/LAW^*

1

Yes

Yes

Yes

8

C1118-8P

1

Yes

No

No

8
