The Cisco 1000 Series Integrated Services Routers (ISR 1000 Series) portfolio has been steadily expanding over the years to provide our customers with the flexibility they need. The ISR 1000 Series combines routing, switching, Wi-Fi, integrated security, and DSL and LTE uplink connectivity options in a single, lightweight, high-performance device. Choose between the traditional Cisco IOS XE or controller-managed Cisco IOS XE SD-WAN software to deploy your network quickly and reliably on all Cisco ISR 1000 Series routers. With a simple and flexible pay-as-you-grow model, you purchase network capacity only when you need it.
Primary features and benefits – Cisco 1101 ISRs
Table 1. Mechanical specifications for the Cisco 1101 models
|
Feature |
C1101-4P |
C1101-4PLTEP |
C1101-4PLTEPW |
|
Dimensions (H x W x D) |
1.10 x 7.50 x 6.00 in. |
1.73 x 9.75 x 6.6 in. |
1.73 x 9.75 x 6.6 in. |
|
Weight |
1.89 lb. (0.86 kg) |
3.34 lb. (1.52 kg) |
3.78 lb. (1.71 kg) |
|
Maximum power consumption (excluding external PS loss) |
17.3W |
21.8W |
28W |
|
External power supply |
|
||
|
Maximum output power: 30W |
Maximum output power: 66W |
||
|
Operating conditions |
|
||
|
Nonoperating conditions |
|
||
|
Wi-Fi domains |
- |
- |
A, B, D, E, Q, or Z |
|
Minimum supported version (XE SD-WAN) |
16.10.1 |
17.5.1 |
16.12.1 |
Table 2. Cisco 1101 ISR SKUs
|
Model |
WAN |
LAN |
|||||
|
GE |
DSL |
5G |
LTE |
802.11ac |
GE |
||
|

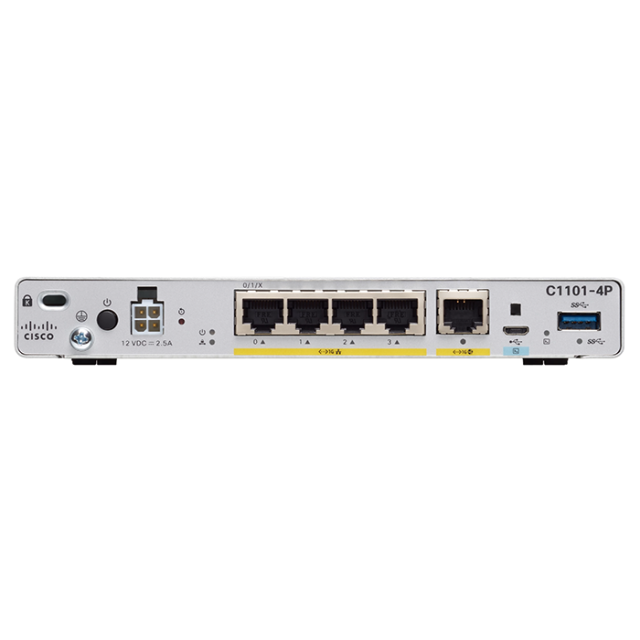

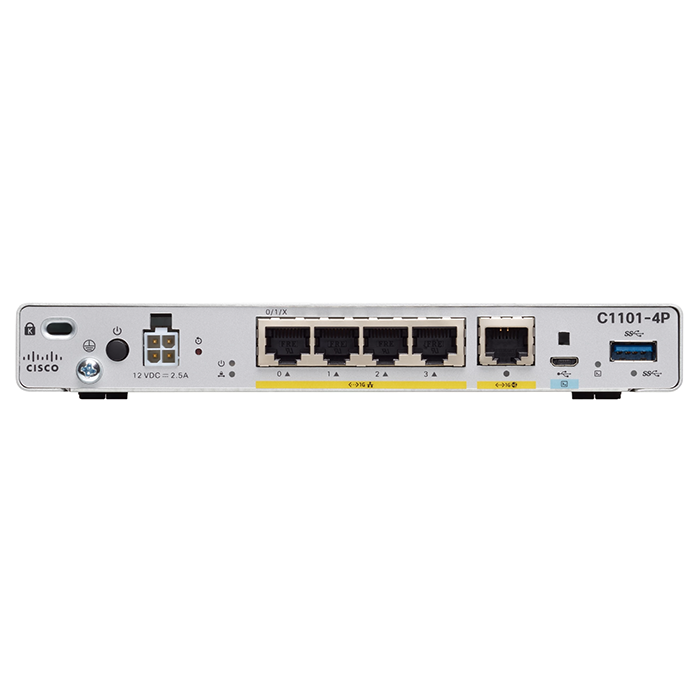

C1101-4P |
1 |
– |
No |
No |
No |
4 |
|
|
C1101-4PLTEP |
1 |
– |
Yes |
Yes |
No |
4 |
|
|
C1101-4PLTEPW* |
1 |
– |
Yes |
Yes |
Yes |
4 |
|
