Name: ASR-9901
Brand: Laiwo Networks
Availability: InStock
Rating: 5 (1 reviews)

Description

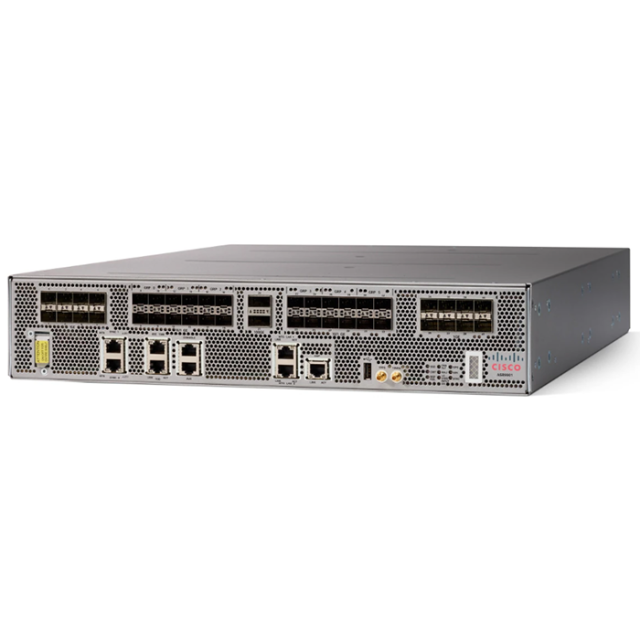

The Cisco ASR 9901 Router is a compact high-capacity Provider Edge (PE) router that delivers 456 Gbps of nonblocking, full-duplex fabric capacity in a Two-Rack-Unit (2RU) form factor. Based on the same Cisco IOS XR software image as the other routers in the Cisco ASR 9000 Series, the Cisco ASR 9901 Router delivers the features and services found on the ASR 9000 Series platforms, allowing customers to standardize on the same Cisco IOS XR operating system. The Cisco ASR 9901 Router has an Integrated Route Switch Processor (RSP) and has 42 integrated ports that supports a combination of 1/10/100GE speeds, a GPS input for stratum-1 clocking, Building Integrated Timing Supply (BITS) ports, and management ports.

Cisco ASR 9000 Series Aggregation Services Routers deliver exceptional scale, service flexibility, and high availability to Carrier Ethernet transport networks. The router is powered by widely deployed Cisco IOS XR 64 bit operating system, an innovative self-healing, distributed operating system designed for always-on operation. The ASR 9901 sets a new standard for Layer 2 and Layer 3 10GE/1GE service density and scale to support large-scale aggregation, Data Center Interconnect (DCI), and Satellite Network Virtualization (nV) System mode on the ASR 9000 Series Router. The ASR 9901 also supports industry leading MAC-SEC encryption on all its port speeds. These versatile capabilities help operators qualify and stock one type of chassis that can be deployed in any combination of Layer 2, Layer 3, DCI, or aggregation applications, thereby reducing Capital Expenditures (CapEx) and Operating Expenses (OpEx), as well as reducing the time required to develop and deploy new services.

Table 1. Specifications for Cisco ASR 9901 Router

Category	Specification
Chassis	ASR 9901
Integrated interfaces	16x1 GE, 24x 1/10 GE, 2x100 GE
Redundancy	Power supply and Fan redundancy
Power supply part number	A9K-1600W-AC A9K-1600W-DC
Physical specifications	Height: 3.43 inches (8.7 cm) Width: 17.32 inches (44 cm) Depth: 23.62 inches (60 cm) Weight of chassis: 47.62 lbs (21.6 kg) Weight of fully configured (including 2 x power modules & 3x Fan trays) chassis 55.97 lbs (25.4 kg)
Power inputs	Worldwide ranging AC (90-265V; 50-60 Hz) Worldwide ranging DC (-40V to -72V)
Power consumption	850 watts typical, 1100 watts maximum
Environmental conditions	Operating temperature: 41° to 104°F (5° to 40°C) Storage temperature: -40 to 167°F (-40 to 75°C) Relative humidity: 10 to 85%, noncondensing Regulatory compliance
Environmental Specifications
Operating temperature (nominal)	41 to 104°F (5 to 40°C)
Operating temperature (short-term)	23 to 131°F (-5 to 55°C)
Operating humidity (nominal) (relative humidity)	10 to 85%
Operating humidity (short-term)	5 to 90% Note: Not to exceed 0.024 kg water or dry air
Storage temperature	-40 to 158°F (-40 to 70°C)
Storage (relative humidity)	5 to 95% Note: Not to exceed 0.024 kg water or dry air
Operating altitude	0 – 4000 m
Air flow	Front to Back
Compliance
Network Equipment Building Standards (NEBS)	Cisco ASR 9901 is designed to meet: SR-3580: NEBS Criteria Levels (Level 3) GR-1089-CORE: NEBS EMC and Safety GR-63-CORE: NEBS Physical Protection VZ.TPR.9205: Verizon TEEER
ETSI standards	Cisco ASR 9901 is designed to meet (qualification in progress): EN300 386: Telecommunications Network Equipment (EMC) ETSI 300 019 Storage Class 1.1 ETSI 300 019 Transportation Class 2.3 ETSI 300 019 Stationary Use Class 3.1 EN55022: Information Technology Equipment (Emissions) EN55024: Information Technology Equipment (Immunity) EN50082-1/EN-61000-6-1: Generic Immunity Standard
EMC standards	Cisco ASR 9901 is designed to meet: FCC Class A ICES 003 Class A AS/NZS 3548 Class A CISPR 22 (EN55022) Class A VCCI Class A BSMI Class A IEC/EN 61000-3-2: Power Line Harmonics IEC/EN 61000-3-3: Voltage Fluctuations and Flicker EN 50121-4: Railway EMC
Immunity	Cisco ASR 9901 is designed to meet: IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) IEC/EN-61000-4-3: Radiated Immunity (10V/m) IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) IEC/EN-61000-4-5: Signal Ports (1kV) IEC/EN-61000-4-5: Surge DC Port (1kV) IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations EN 50121-4: Railway EMC
Safety	Cisco ASR 9901 is designed to meet: UL/CSA/IEC/EN 60950-1 IEC/EN 60825 Laser Safety ACA TS001 AS/NZS 60950 FDA: Code of Federal Regulations Laser Safety

Table 2. Ordering information for the ASR 9901 Router with the Flexible Consumption Model

Part number	Feature description
ASR-9901-FC	ASR 9901 456G Flexible Consumption Chassis
A9K-1600W-AC	ASR 9900 Series 1600W AC Power Supply for ASR-9901
A9K-1600W-DC	ASR 9900 Series 1600W DC Power Supply for ASR-9901
ASR-9901-FAN	ASR 9901 Fan Tray
ASR-9901-2P-KIT	ASR 9901 2 Post Mounting Kit for 19 & 23 in Rack
ASR-9901-4P-KIT	ASR 9901 4 Post Mounting Kit for 19 & 23 in Rack
S-A9K-LI-LIC-FC	ASR 9K Smart License Lawful Intercept – Flexible Consumption Model
S-A9K-BNG-8K-FC	ASR 9K FCM Smart License for 8,000 BNG Subscribers
S-A9K-BNG-ADV-FC	ASR 9K FCM Smart License for BNG Advance features
ESS-ED-100G-RTU1	Edge Essentials Software RTU License per 100G
ADV-ED-100G-RTU1	Edge Advantage w/o Essentials Software RTU License per 100G
ADN-ED-100G-RTU1	Edge Advantage w/ Essentials Software RTU License per 100G
ESS-ED-100G-SIA5	Edge Essentials SIA per 100G 60-120 months
ESS-ED-100G-SIA3	Edge Essentials SIA per 100G 36-59 months
ADV-ED-100G-SIA5	Edge Advantage w/o Essentials SIA per 100G for 60-120 months
ADV-ED-100G-SIA3	Edge Advantage w/o Essentials SIA per 100G for 36-59 months
ADN-ED-100G-SIA5	Edge Advantage w/ Essentials SIA per 100G for 60-120 months
ADN-ED-100G-SIA3	Edge Advantage w/ Essentials SIA per 100G for 36-59 months

Table 3. Ordering information for the ASR 9901 Router with the Traditional Business Model

Part number	Feature description
ASR-9901	ASR 9901 Chassis
ASR-9901-120G	ASR 9901 Chassis Pay-As-You-Grow 120G Base HW PID
ASR-9901-256G	ASR 9901 Chassis Pay-As-You-Grow Base HW PID
A9K-1600W-AC	ASR 9900 Series 1600W AC Power Supply for ASR-9901
A9K-1600W-DC	ASR 9900 Series 1600W DC Power Supply for ASR-9901
ASR-9901-FAN	ASR 9901 Fan Tray
ASR-9901-2P-KIT	ASR 9901 2 Post Mounting Kit for 19 & 23 in Rack
ASR-9901-4P-KIT	ASR 9901 4 Post Mounting Kit for 19 & 23 in Rack
A9K9901-UP120-256G	ASR 9901 120 – 256 Upgrade License
A9K9901-UP256-456G	ASR 9901 256 – 456 Upgrade License

ASR-9901

Description
