The Cisco ASR 9010 Aggregation Services Routers provide unsurpassed speeds, up through 400 Gigabit Ethernet, with scale and high density. The Cisco ASR 9000 and ASR 9900 Series Routers provide flexible options for high density 1 Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet and 400 Gigabit Ethernet ports without the need for a complete chassis replacement. These line cards, offered in base and extended-scale configurations, are complemented by the nonblocking fabric (on the RSP for the Cisco ASR 9006, ASR 9010, ASR 9906, ASR 9910 and ASR 9904 Routers and on separate fabric cards for the Cisco ASR 9906, ASR 9910, ASR 9912 and ASR 9922 Routers), and by the innovative backplane, thermal, and power infrastructure on the chassis.
Cisco ASR 9006 and ASR 9010 systems are designed to the same high standards of performance and reliability; they feature the same power and thermal innovations; and they can share the line cards, PEMs, and power supplies for maximum flexibility in your network planning. The RSPs can be shared between the Cisco ASR 9010, ASR 9006, ASR 9910 and ASR 9906 and ASR 9904 chassis; the Cisco ASR 9922 and ASR 9912 chassis come with their own route processors and up to seven fabric cards. The Cisco ASR 9910 and ASR 9906 each come with their own chassis specific five fabric cards.
Table 1. Cisco ASR 9006 and ASR 9010 Specifications
|
Specification |
Model |
|
|
Cisco ASR 9006 |
Cisco ASR 9010 |
|
|
Categories |
||
|
Physical specifications |
Height: 17.50 in. (444.5 mm) (10 RU) Width: 17.38 in. (441.45 mm) Depth:
Weight:
|
Height: 36.75 in. (933.45 mm) (21 RU) Width: 17.38 in. (441.45 mm) Depth:
Weight:
|
|
Slot orientation |
Horizontal |
Vertical |
|
Cisco ASR 9000 Series RSP |
Dual redundant RSPs with integrated fabric in 2 slots |
Dual redundant RSPs with integrated fabric in 2 slots |
|
Cisco ASR 9000 Series line cards |
4 line-card slots |
8 line-card slots |
|
“Commons” components |
2 RSPs 2 fan trays 1 PEM (either DC or AC) 1 fan filter |
2 RSPs 2 fan trays 2 PEMs (either DC or AC) 1 fan filter |
|
Reliability and availability |
Fabric redundancy Fan redundancy Feed redundancy Power-supply redundancy RSP redundancy Software redundancy |
Fabric redundancy Fan redundancy Feed redundancy Power-supply redundancy RSP redundancy Software redundancy |
|
Rack mounting |
19-in. default 21- and 23-in. adapters available Note: Minimum 17.75-in. opening between posts is needed for proper operation |
19-in. default 21- and 23-in. adapters available Note: Minimum 17.75-in. opening between posts is needed for proper operation |
|
Cabinet mounting |
Yes Note: Doors not recommended in enclosed cabinets |
Yes Note: Doors not recommended in enclosed cabinets |
|
Wall mounting |
No |
No |
|
Airflow |
Right-to-back, Front-to-back with baffle |
Front-to-back |
|
Performance |
||
|
Fabric |
One per RSP:
|
One per RSP:
|
|
Thermal |
Two fan trays:
|
Two fan trays:
|
|
Power |
||
|
Modularity |
Pay-as-you-grow power for future scalability, available in AC and DC. Multiple power module types:
Note: Mixing of AC and DC modules is not supported |
Pay-as-you-grow power for future scalability, available in AC and DC. Multiple power module types:
Note: Mixing of AC and DC modules is not supported |
|
Redundancy |
|
|
|
Power zones |
No power zone restrictions Fully load-sharing power infrastructure |
No power zone restrictions Fully load-sharing power infrastructure |
|
Power input |
Worldwide ranging AC (200-240V; 50-60 Hz; 16A maximum) Worldwide ranging DC (-40 to -72V; 50A nominal, 60A maximum) |
Worldwide ranging AC (200-240V; 50-60 Hz; 16A maximum) Worldwide ranging DC (-40 to -72V; 50A nominal, 60A maximum) |
|
Power-module airflow |
Front-to-back |
Front-to-back |
Table 2. ASR 9010 Series Modular Routers ordering information
|
Part number |
Feature description |
|
ASR-9010-SYS= |
ASR 9010 8 Line Card Slot Chassis, Spare |
|
ASR-9910-RF |
ASR 9910 8 Line Card Slot Chassis REMANUFACTURED |
|
ASR-9010-DOOR= |
ASR-9010 Door (with lock) |
|
ASR-9010-SYS |
ASR 9010 8 Line Card Slot Chassis |
|
ASR-9010-4P-KIT |
ASR-9010 4 Post Mounting Kit |
|
ASR-9010-2P-KIT-RF |
ASR-9010 2 Post Mounting Kit REMANUFACTURED |
|
ASR-9010-FILTER= |
ASR-9010 Air Filter |
|
ASR-9010-2P-KIT |
ASR-9010 2 Post Mounting Kit |
|
ASR-9010-2P-KIT= |
ASR-9010 2 Post Mounting Kit |
|
ASR-9010-4P-KIT= |
ASR-9010 4 Post Mounting Kit |
|
ASR-9010-DC-V2-RF |
ASR 9010 DC Chassis with PEM Version 2 Spare REMANUFACTURED |
|
ASR-9010-DOOR-RF |
ASR-9010 Door (with lock) REMANUFACTURED |
|
ASR-9010-SYS-RF |
ASR-9010 Chassis REMANUFACTURED |
|
ASR-9010-AC-V2 |
ASR 9010 AC Chassis with PEM Version 2 |
|
ASR-9010-DC-V2= |
ASR 9010 DC Chassis Version 2 Spare |
|
ASR-9010-AC-V2= |
ASR 9010 AC Chassis Version 2 Spare |
|
ASR-9010-FAN-RF |
ASR-9010 Fan Tray REMANUFACTURED |
|
ASR-9010-FAN-V2= |
ASR-9010 Fan Tray Version 2 Spare |
|
ASR-9010-DC-V2 |
ASR 9010 DC Chassis with PEM Version 2 |
|
ASR-9010-AC-V2-RF |
ASR 9010 AC Chassis with PEM Version 2 REMANUFACTURED |
|
ASR-9010-FAN-V2-RF |
ASR-9010 Fan Tray Version 2 Spare REMANUFACTURED |
|
ASR-9010-4P-KIT-RF |
ASR-9010 4 Post Mounting Kit REMANUFACTURED |
|
ASR-9010-FAN-V2 |
ASR-9010 Fan Tray Version 2 |
Table 3. ASR 9006 Series Modular Routers ordering information
|
Part number |
Feature description |
|
ASR-9006-FAN-V2 |
ASR-9006 Fan Tray Version 2 |
|
ASR-9006-FILTER= |
ASR-9006 Air Filter |
|
ASR-9006-DOOR= |
ASR-9006 Door (with lock) |
|
ASR-9006-FAN-V2-RF |
ASR-9006 Fan Tray Version 2 REMANUFACTURED |
|
ASR-9006-FAN-V2= |
ASR-9006 Fan Tray Version 2 |
|
ASR-9006-SYS-RF |
ASR-9006 Chassis REMANUFACTURED |
|
ASR-9006-BAFFLE= |
ASR 9006 Baffle Spare for Front-to-Back Airflow |
|
ASR-9006-SYS= |
ASR 9006 4 Line Card Slot Chassis, Spare |
|
ASR-9006-SYS |
ASR 9006 4 Line Card Slot Chassis |
|
ASR-9006-AC-V2-RF |
ASR9006AC Chassis withPEM Version2 Spare REMANUFACTURED |
|
ASR-9006-FAN-RF |
ASR-9006 Fan Tray REMANUFACTURED |
|
ASR-9006-BAFFLE-RF |
ASR9006 BaffleSpare for Front-to-Back Airflow REMANUFACTURED |
|
ASR-9006-AC-V2= |
ASR 9006 AC Chassis Version 2 Spare |
|
ASR-9006-DOOR-RF |
ASR-9006 Door (with lock) REMANUFACTURED |
|
ASR-9006-DC-V2 |
ASR 9006 DC Chassis with PEM Version 2 |
|
ASR-9006-DC-V2= |
ASR 9006 DC Chassis Version 2 Spare |
|

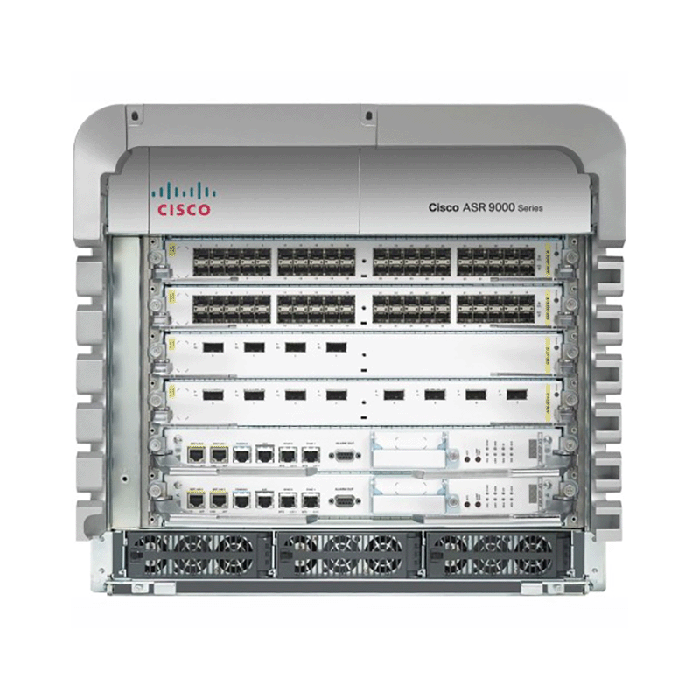

ASR-9006-AC-V2 |
ASR 9006 AC Chassis with PEM Version 2 |
|
ASR-9006-FILTER-RF |
ASR-9006 Air Filter REMANUFACTURED |
|
ASR-9006-DC-V2-RF |
ASR 9006 DC Chassis with PEM Version 2 Spare REMANUFACTURED |
