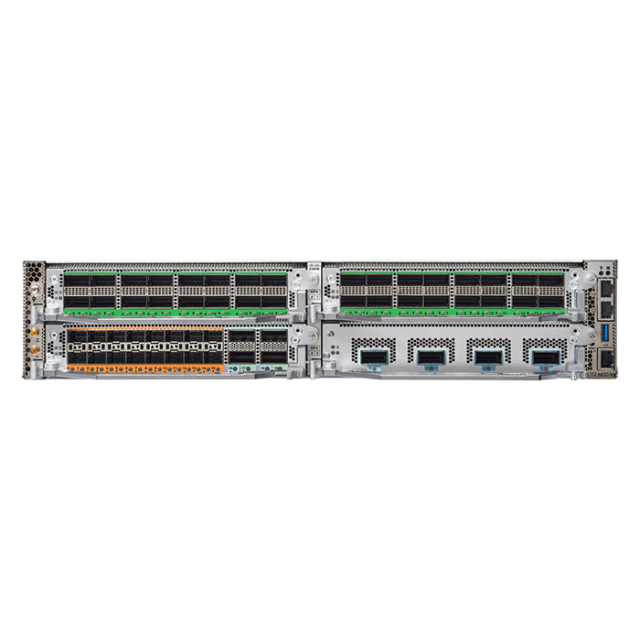

Name: 8712-MOD-M
Brand: Laiwo Networks
Availability: InStock
Rating: 5 (1 reviews)

Description

The Cisco 8700 series is an addition to the Cisco 8000 Series Routers powered by Cisco Silicon One^™ processors. 8700 products embody this cutting-edge innovation of the 8000 portfolio, offering advanced features engineered for seamless integration and scalability. This helps expand into aggregation and edge use cases by providing high-capacity solution tailored for the demands of the modern metro networks.

With the agility of Silicon One enabling applications at scale delivered on power and space optimized form factors, Cisco 8700 systems can address a wide variety of use cases such a business edge, residential aggregation, 5G mobile backhaul, provider core, and internet peering.

Table 1. Cisco 8700 series routers

Product ID	Bandwidth	Height	Ports
8711-32FH-M	12.8 Tbps	1RU	16 ports QSFP-DD800 and 16 ports QSFP56-DD
8712-MOD-M	6.4 Tbps	2RU	4 modular port adapter slots at 1.6Tbps capacity each

Table 2. Features and benefits

Features	8711-32FH-M	8712-MOD-M
Interfaces	Integrated interfaces: Flexible port rate configuration: 800G (8x100G, 2x400G), 400G, 100G, 40G, 25G, 10G Breakout support: 2x400G, 8x100G, 4x100G, 2x100G, 4x25G, 4x10G Routed Optical Network (RON) ready: Support 400G DCO optics	Interfaces via MPA: Flexible port rate configuration: 400G, 100G, 40G, 50G, 25G, 10G, 1G using Modular Port Adapters Breakout support: 4x100G, 2x100G, 4x25G, 4x10G Routed Optical Networking (RON) Architecture ready
Cisco pluggable interface	Compatibility with a diverse range of optical modules, ensuring optimal performance and flexibility: QSFP+, QSFP28, QSFP56-DD, QSFP-DD800	Compatibility with a diverse range of optical pluggable modules, ensuring optimal performance and flexibility: SFP, SFP+, SFP28, QSFP+, SFP56, QSFP28, QSFP56, QSFP28-DD, QSFP56-DD, Cu-DAC and AOC.
Software	Supports Cisco IOS XR Software Release 24.3.1 and later. Enhanced Automation for onboarding, service provisioning and monitoring. Programmable infrastructure with segment routing (SR, SRv6) and EVPN.	Industry-leading, carrier-grade Cisco IOS XR: Modular, patchable, scalable, highly available, carrier-grade, and edge-proven operating system
Redundancy	6 x Redundant fan trays (N+1) 2 x Redundant AC or DC power supplies (1+1)	4 x Redundant fan trays (N+1) 2 x Redundant AC or DC power supplies (1+1)

Table 3. List of key specifications

Features	8711-32FH-M	8712-MOD-M
Interfaces	16 ports QSFP-DD800 and 16 ports QSFP56-DD with breakout capabilities Interface combinations: ● Up to 128 100G interfaces or ● Up to 32 ports of 400G interfaces or ● Up to 16 ports of 800G (2x400G, 8x100G) or ● A combination of 400G, 800G (not exceeding 12.8T of bandwidth)	4 MPA slots at 1.6Tbps capacity each with breakout capabilities Interface combinations: ● Up to 64 ports 1G interfaces or ● Up to 128 ports 10G interfaces or ● Up to 128 ports 25G interfaces or ● Up to 32 ports of 40G interfaces or ● Up to 64 ports of 100G interfaces ● Up to 16 ports of 400G interfaces
Integrated route processor	6-core x86 CPU (2.5GHz) System memory: Total 64GB DRAM Solid-state drive (SSD): 480GB SSD	6-core x86 CPU (2.5GHz) System memory: 64GB DDR4 SODIMM Solid-state drive (SSD): 480GB SSD
Performance	Up to 12.8T of system throughput Full line-rate MACSec encryption capable on all ports* *Support post 24.3.1	Up to 6.4T of system throughput Full line-rate MACsec encryption capable on all ports* *Software support on roadmap
Management interfaces	RS-232 serial ports: 1 x RJ45 Management ports: 1 x RJ45(1G) USB 3.0 ports: 1 x USB 3.0 Type A interface	RS-232 serial ports: 1 x RJ45 Management ports: 1 x RJ45(1G) USB 2.0 ports: 1 x USB 2.0 Type A interface
Timing/Ports	Timing: PTP with Class C performance, SyncE, GNSS Interfaces: 1pps, 10MHz, 1588-TOD, GNSS PRTC-B	Timing: PTP with Class C performance, SyncE, GNSS Interfaces: 1pps, 10MHz, 1588-TOD, GNSS PRTC-B
Power features	Typical system power: 740W (without optics) Field replaceable Power System Unit (PSU) AC or DC DC PSU AC PSU power supply efficiency: 80+ Platinum 2x PSU with 1+1 Redundancy	Typical system power: 375W (without optics) Field replaceable Power System Unit (PSU) AC or DC DC PSU AC PSU power supply efficiency: 80+ Platinum Related image, diagram or screenshot 2x PSU with 1+1 Redundancy
Fans and air flow	PSI / front to back airflow or PSE / back to front airflow 6 Fans with 5+1 Redundancy Field replaceable fans	PSI / front to back airflow or PSE / back to front airflow 4 Fans with 3+1 Redundancy Field replaceable fans
Physical specifications	Height: 1.73 in, 43.80 mm Width: 17.30 in, 439.42 mm Depth: 23.62 in, 600.00 mm Weight: 35.43 lb or 16.07 kg (with 2 PSUs and 6 fans) 28.51 lb or 12.93 kg (without PSUs and fans)	Height: 3.5 in or 87.6 mm Width: 17.3 in or 439.4 mm Chassis Depth: 23.6 in or 600 mm Weight: 55.1 lb or 25 kg
Environmental properties	Operating temperature: 0 to 40°C, mean sea level (MSL) Non-operating (storage) temperature: -40 to 70°C Operating humidity: 5% to 95% ± 2% Storage (relative) humidity: 5% to 95% ± 2%	Operating temperature: 0 to 40C Non-operating(storage) temperature: -40 to 70C Operating humidity: 5% to 95% +- 2% Storage (relative) humidity: 5% to 95% +- 2%

Table 4. Cisco 8711-32FH-M Hardware and software ordering information

Product ID	Product Description
8711-32FH-M	Cisco 8711 1RU 12.8T P100 System
FAN-1RU-PI-V2	1RU Fan with Port-side Air Intake
FAN-1RU-PE-V2	1RU Fan with Port-side Air Exhaust
PSU2KW-ACPI	2000W AC Power Module with Port-side Air Intake
PSU2KW-ACPE	2000W AC Power Module with Port-side Air Exhaust
PSU2KW-DCPI	2000W DC Power Module with Port-side Air Intake
PSU2KW-DCPE	2000W DC Power Module with Port-side Air Exhaust
PWR-2KW-DC-CBL	2000W DC Power Cable
8000-QSFP-DCAP	QSFP Dust CAP
8700-1RU-4P-KIT	Rack Mount Kit for Cisco 8700 1RU Chassis 19” and 23”, 4 POST
8700-1RU-2P-KIT	Rack Mount Kit for Cisco 8700 1RU Chassis 19” and 23”, 2 POST
ESS-8KE-100G-RTU	Essential Right-to-Use 100G for Cisco 8000E Series
ADN-8KE-100G-RTU	Advantage Right-to-Use 100G for Cisco 8000E Series
PRM-8KE-100G-RTU	Premium Right-to-Use 100G for Cisco 8000E Series
8KSW-B-SIA-3	8000 Type B Device SIA for 3-year term FCM 2.0
8KSW-B-SIA-5	8000 Type B Device SIA for 5-year term FCM 2.0

Table 5. Cisco 8712-MOD-M Hardware and software ordering information

Product ID	Product Description
8712-MOD-M	Cisco 8712 2RU 6.4T System with 4 MPA bays
8K-MPA-4D	Cisco 8700 MPA with 4 x QSFP56 DD
8K-MPA-16H	Cisco 8700 MPA with 16 x QSFP28
8K-MPA-16Z2D	Cisco 8700 MPA with 16 ports SFP56 and 2 ports QSFP56-DD* *4xQDD ports that can be used in 2x400G or 4x100G/200G
FAN-PI-V3	Cisco 8000 FAN - port-side intake
FAN-PE-V3	Cisco 8000 FAN - port-side Exhaust
PSU2KW-DCPI	2000W 48V DC Power Module with Port-side Air Intake
PSU2KW-DCPE	2000W 48V DC Power Module with Port-side Exhaust
PSU2KW-ACPI	2000W AC Power Module with Port-side Air Intake
PSU2KW-ACPE	2000W AC Power Module with Port-side Exhaust
8000-QSFP-DCAP	QSFP Dust Cap
