The Cisco 8200 Series is a family of fixed systems powered by Cisco Silicon One processors. It embodies the cutting-edge innovation of the Cisco 8000 Series portfolio, offering advanced features engineered for seamless integration and scalability in one- and two-rack-unit (1RU and 2RU) compact form factors. Whether enhancing existing infrastructure or enabling new capabilities, the 8200 Series empowers organizations to achieve their goals with unmatched efficiency and effectiveness.
With the agility of Silicon One enabling applications at scale delivered on power- and space-optimized form factors, Cisco 8200 Series systems can address a wide variety of use cases such as provider core and internet peering.
Table 1. Cisco 8200 series routers
|
Fixed chassis |
Bandwidth |
Height |
Ports |
|

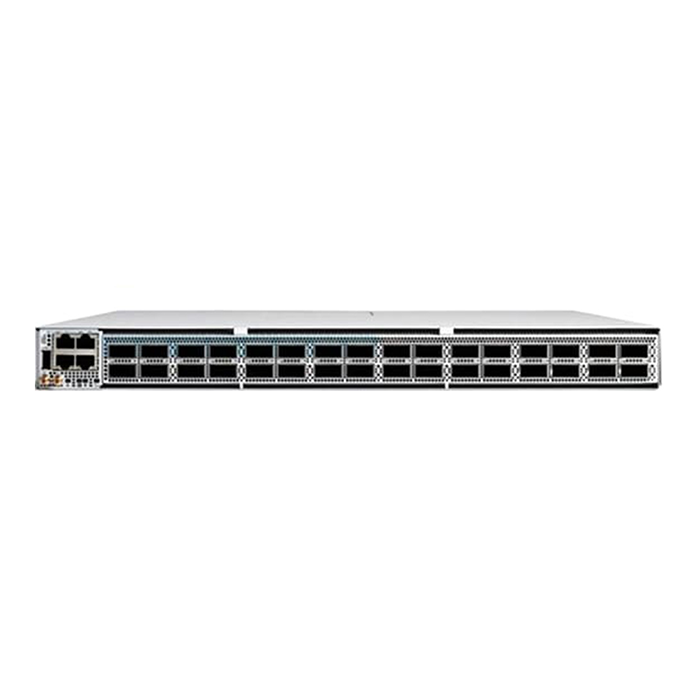

8201-24H8FH |
5.6 Tbps |
1 RU |
8 QSFP56-DD 400GbE and 24 QSFP28 100GbE |
|

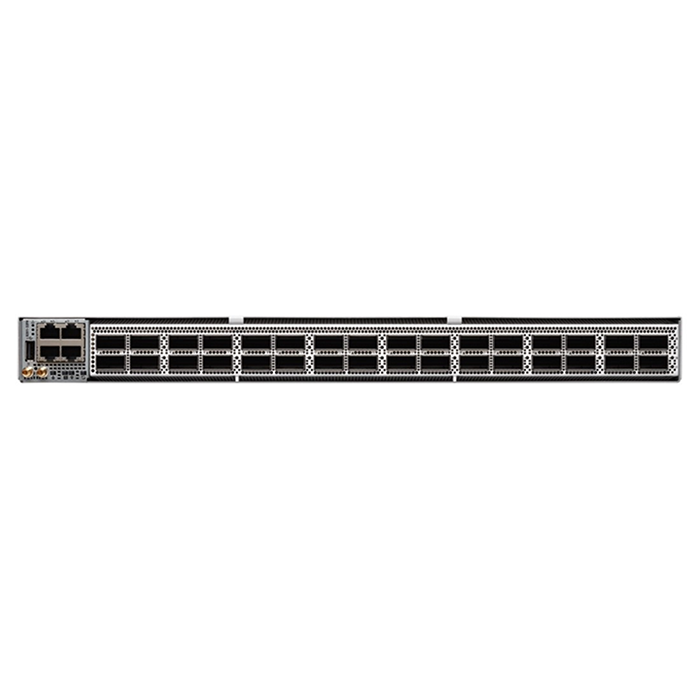

8201-32FH / 8201-32FH-O (SONiC only) |
12.8 Tbps |
1 RU |
32 QSFP56-DD 400GbE |
|
8202-32FH-M |
12.8 Tbps |
2 RU |
32 QSFP56-DD 400GbE with MACsec |
|
8212-48FH-M |
19.2 Tbps |
2 RU |
24 QSFP-DD 800G or 48 QSFP56-DD 400GbE with MACsec |
Table 2. Features and benefits of the Cisco 8200 Series fixed system
|
Feature |
Benefit |
|
Integrated interfaces |
Flexible port rate configuration: 800G (8x 100G, 2x 400G on 8212-48H-M), 400G, 100G, 40G, 25G, 10G Breakout support: 2x 400G (8212-48FH-M), 8x 100G (8212-48FH-M), 4x 100G, 2x 100G, 4x 25G, 4x 10G Routed optical network (RON) ready: Supports 400G DCO optics |
|
Cisco pluggable interface |
Compatible with a diverse range of optical modules for optimal performance and flexibility: QSFP+, QSFP28, QSFP56-DD, QSFP-DD800 |
|
Software |
Enhanced automation for onboarding, service provisioning, and monitoring Programmable infrastructure with segment routing (SR, SRv6) and Ethernet VPN (EVPN) |
|
Redundancy |
N+1 redundant fan 1+1 redundant AC or DC power supplies |
Table 3. Product specification
|
Series or model |
Physical characteristics |
|
Cisco 8200 Series |
Operating temperature: 32° to 104°F (0° to 40°C) Nonoperating temperature: -40° to 158°F (-40° to 70°C) Humidity: 5% to 95% (noncondensing) Altitude: 0 to 9842 ft (0 to 3000 m) |
|
8201-24H8FH |
Intel 4-core 2.4-GHz CPU with 32 GB of DRAM. RS-232 console, 10G control plane expansion, 1G management, 1x USB 2.0, GBP (ToD, 10 MHz, 1PPS), 1588, and BITs (sync). (H) 1.73 x (W) 17.3 x (D) 23.6 in. (4.40 x 43.9 x 59.9 cm) – 1 RU 31 lb (14.09 kg) Typical system power at 5.6 Tbps: 205W 2 power supplies, 6 fans |
|
8201-32FH/ |
Intel 4-core 2.4-GHz CPU with 32 GB of DRAM. RS-232 console, 10G control plane expansion, 1G management, 1x USB 2.0, GBP (ToD, 10 MHz, 1PPS), 1588, and BITs (sync). (H) 1.73 x (W) 17.3 x (D) 23.6 in. (4.40 x 43.9 x 59.9 cm) – 1 RU 31 lb (14.09 kg) Typical system power at 12.8 Tbps: 288W 2 power supplies, 6 fans |
|
8202-32FH-M |
Intel 4-core 2.4-GHz CPU with 64 GB of DRAM. RS-232 console, 10G control plane expansion, 1G management, 1x USB 2.0, GBP (ToD, 10 MHz, 1PPS), 1588, and BITs (sync). (H) 3.45 x (W) 17.3 x (D) 23.6 in. (8.77 x 43.9 x 59.9 cm) – 2 RU 50.25 lb (22.8 kg) Typical system power at 12.8 Tbps: 575W 2 power supplies, 4 fans, and optional air filter |
|
8212-48FH-M |
Intel 6-core x86 CPU with 64 GB of DRAM and 128-GB SSD. RS-232 console, 10G control plane expansion, 1G management, 1x USB 2.0, GBP (ToD, 10 MHz, 1PPS), 1588, and BITs (sync). (H) 3.45 x (W) 17.3 x (D) 23.6 in. (8.77 x 43.9 x 59.9 cm) – 2 RU 50.25 lb (22.8 kg) Typical system power at 19.2 Tbps: TBD 2 power supplies, 4 fans, and optional air filter PTP timing with Class C performance, MACsec all ports |
Table 4. Cisco 8200 series routers ordering information
|
PID |
Product description |
|
8201-24H8FH |
Cisco 8201 1RU System w/ 8x400GE QSFP56-DD&24x100GE QSFP28 |
|
8201-32FH/8201-32FH-O |
Cisco 8200 32x400G QSFPDD 1RU Fixed System w/HBM |
|
8202-32FH-M |
Cisco 8200 2RU Chassis w/32x400G, HBM & MACsec |
|
8212-48FH-M |
Cisco 8212 2RU System w/ 48x400GE QSFP56-DD, HBM & MACsec |
