Powered by the Cisco Silicon One A100 ASIC, the Cisco 8010 Series Large Density Fixed Routers offer Class C timing support and end-to-end encryption, enabling seamless network growth and scalability. Built on the robust Cisco IOS XR operating system, these routers are designed for use in dense metro access and preaggregation deployments, delivering both Capital Expenditure (CapEx) savings and enhanced operational simplicity.
The Cisco 8010 Series offers versatile Ethernet interface options, ranging from 1G and 25G to 100G and 400G. These industrial-temperature devices support Class C timing and feature encryption capabilities, including MACsec at line rate on all ports and IPsec for data security. In line with our sustainability goals, these devices feature Gold-level efficient power supply units for improved power utilization and use minimal plastic labels and parts, helping to reduce your carbon footprint.Table 1. Key attributes of the 8011-4G24Y4H-I model
|
Chassis product ID |

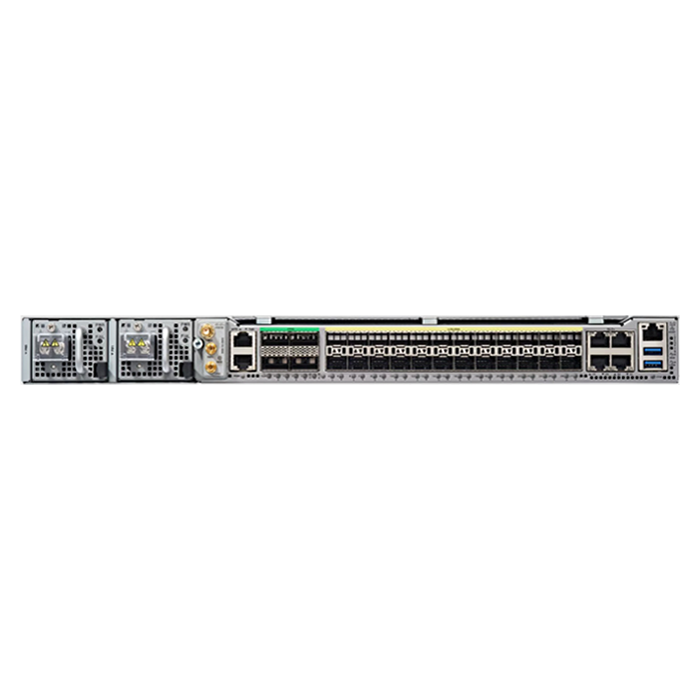

8011-4G24Y4H-I |
|
CPU |
4 cores 2.2GHz |
|
Memory |
16GB DRAM |
|
Storage |
32GB eMMC |
|
Interfaces |
4 ports 40/100G QSFP28 24 ports 1/10/25G SFP28 4 ports 10/100/1000M RJ-45 |
|
Performance |
1004 Gbps |
|
Power supplies |
Modular redundant (AC/DC) |
|
Fans |
Fixed fans with redundancy |
|
Airflow |
Front to back |
|
Operating temperature range |
I-Temp –40° to +65°C (–40° to +149°F) at 305 m (1000 ft) –40° to +60°C (–40 to +140°F) at 1829 m (6000 ft) –40° to +53°C (–40 to +127°F) at 3960 m (13,000 ft) |
|
Nonoperating (storage) temperature |
–40° to +70°C (–40° to +158°F) |
|
Operating humidity range |
5% to 95% RH, noncondensing |
|
Storage (relative) humidity |
5% to 95% at 40°C (104°F) per NEBS GR-63-Core |
|
Altitude |
Up to 3960 meters (13,000 feet) |
|
Power |
Worldwide ranging AC (90 to 264V; 50 to 60 Hz) Worldwide ranging DC (–40V to –72V) |
|
Surge rating* |
DC: 2kV CM, 1kV DM AC: 2kV CM, 2kV DM |
|
Timing ports |
Time of Day (ToD) and Building Integrated Timing Supply (BITS) 8000-TIC: 1 PPS, 10 MHz 8000-TIC-GNSS (internal GNSS PRTC-B module): 1 PPS, 10 MHz, ANT |
|
Physical specifications |
Height: 43.6 mm (1.72 in.) Width: 439.4 mm (17.3 in.) Depth: 260 mm (10.24 in.) Weight: 4.5 kg (no PSU) |
|
Mounting options |
19 in. (48 cm), 23 in. (58 cm), ETSI |
|
Management interfaces |
USB console port USB memory port RS-232 console port 10/100/1000M RJ-45 Ethernet out-of-band management port |
Table 2. Cisco 8010 series routers ordering information
| Product ID | Description |
| Router | |
| 8011-4G24Y4H-I | Cisco 8010 4x1G Cu, 24x1/10/25G SFP28, 4x100G QSFP28 |
| Accessory kit | |
| CBL-BRKT-V1 | Cable Management Bracket for 8010 Series |
| RCKMT-19-V1 | 19-inch Rack Mounting Kit for 8010 Series |
| RCKMT-ETSI-V1 | 21-inch (ETSI) Rack Mounting Kit for 8010 Series |
| RCKMT-23-V1 | 23-inch Rack Mounting Kit for 8010 Series |
| Software licenses | |
| ESS-NGA-10G-RTU | Access Network SW&Autom Ess 1.0 Perp RTU (per 10G) |
| ADN-NGA-10G-RTU | Access Network SW&Autom Adn 1.0 Perp RTU (per 10G) |
| PRM-NGA-10G-RTU | Access Network SW&Autom Prm 1.0 Perp RTU (per 10G) |
| NGA-L-SIA-3 | SIA per system for 3 years - Large |
| NGA-L-SIA-5 | SIA per system for 5 years – Large |
| Power cables | |
| CAB-AC-SA | Power Cord - South Africa, 16/10A, 250V, 1830mm, -40C to +85C |
| CAB-AC-ARG | Power Cord - Argentina, 10A, 250V, 2500mm, -40C to +85C |
| CAB-AC-ISR | Power Cord - Israel, 16/10A, 250V, 2500mm, -40C to +85C |
| CAB-AC-TAI | Power Cord - Taiwan, 15/10A, 125V, 2500mm, -40C to +85C |
| CAB-AC-CHI | Power Cord - China, 10A, 250V, 2500mm, -40C to +85C |
| CAB-AC-KOR | Power Cord - Korea, 16/10A, 125V, 2500mm, -40C to +85C |
| CAB-AC-EUR | Power Cord - Europe, 16/10A, 250V, 2500mm, -40C to +85C |
| CAB-AC-ITL | Power Cord - Italy, 10A, 250V, 2500mm, -40C to +85C |
| CAB-AC-UK | Power Cord - UK, 13/10A, 250V, 2500mm, -40C to +85C |
| CAB-AC-AUS | Power Cord - Australia, 10A, 250V, 2500mm, -40C to +85C |
| CAB-AC-US | Power Cord - US, 15A, 125V, 2500mm, -40C to +85C |
| CAB-AC-BRA | Power Cord - Brazil, 10A, 250V, 2500mm, -40C to +85C |
| CAB-AC-IND | Power Cord - India, 16/10A, 250V, 2500mm, -40C to +85C |
| CAB-AC-SUI | Power Cord - Swiss, 10A, 250V, 2500mm, -40C to +85C |
